RhizoSystem Standard - Drip & Drain
Couldn't load pickup availability
RhizoSystem Dripper — Standard
Tired of hand watering plants? Sick of removing the runoff? Automate it all…try our EXCLUSIVE RhizoSystem Drip and Drain!
Use it to drip feed plants the exact dose needed for optimum 20 - 30% runoff – no more, no less.
To fight root rot, mineral build-ups and oversaturation, all runoff is removed before it can get reabsorbed.
For EVEN GREATER drainage, you get a RhizoPot with each stand – bargain!
- RhizoSystem (drip & drain)
- Standard size stands (for up to 16L pots)
- Automatically removes runoff (waste feed)
- Complete with full drip system
Expandable & Flexible
You can expand it or customise your system easily. Extra parts can be bought separately.
No Spillages
Automatically removing runoff keeps your tents clear of spillages.
Hassle-Free
Once set up, everything's automated. You only need to empty your waste tank.
Prevents Mineral Build Ups
You can easily achieve 20-30% runoff, which flushes unused minerals out of your media. That way, plants get the right ratio of nutrients.
Reduce Risk Of Root Rot
Stale, stagnant, oxygen-depleted feed is removed so plants can't reabsorb it. This helps prevent root diseases.
Precise Feeding
You get complete control of what, when & how much you feed.
| Suggested Layout | ||
|---|---|---|
| Space Needed | ||
| 4 Pot (Lite) | 1.2m x 1.2m | |
| 8 Pot (Lite) | 1.2m x 2.4m | |
| 12 Pot | 2m x 2m | |
| 16 Pot | 2.4m x 2.4m | |
| 24 Pot | 2.4m x 3.6m | |
| 36 Pot | 3.6m x 3.6m | |
We Recommend
- Use our bestselling RhizoPots with your system
They’re unique fabric pots that will naturally prune your roots and improve overall growth. They really are the best ones to buy.
- Upgrade to our drip and drain RhizoSystem
You can automatically feed your plants using a network of drippers.
The Science
What's Run Off?
After watering your plants, you’ll notice that some of the feed gathers underneath your pots.
This is called ‘runoff’.
Without runoff, salts, minerals and nutrients accumulate in your pot:
• It’s toxic to your plant
• Plants no longer get the right nutrients
• Plant growth is poor
To flush out nutrients and salts that would otherwise have gathered in your pot, aim for a 20 – 30% runoff. Any more than this is just wasteful.
Why Use A RhizoSystem?
All that runoff has to go somewhere.
If you leave your plants sitting in it, it gets reabsorbed.
You don’t want this to happen
1. The run-off will have become stagnant and may contain bacteria
- This leads to root problems, poor nutrient absorption and even root rot
2. Your growing media becomes saturated with unoxygenated water
- You end up with lots of water, but no oxygen - roots need both.
3. Some nutrients and salt remain your growing media
- When you next feed your plants, the nutrient profile isn’t going to be right.
With a RhizoSystem, all runoff is removed, so none of this happens.
You can safely achieve the optimum 20 – 30% runoff, without any issues.
Kit Contains

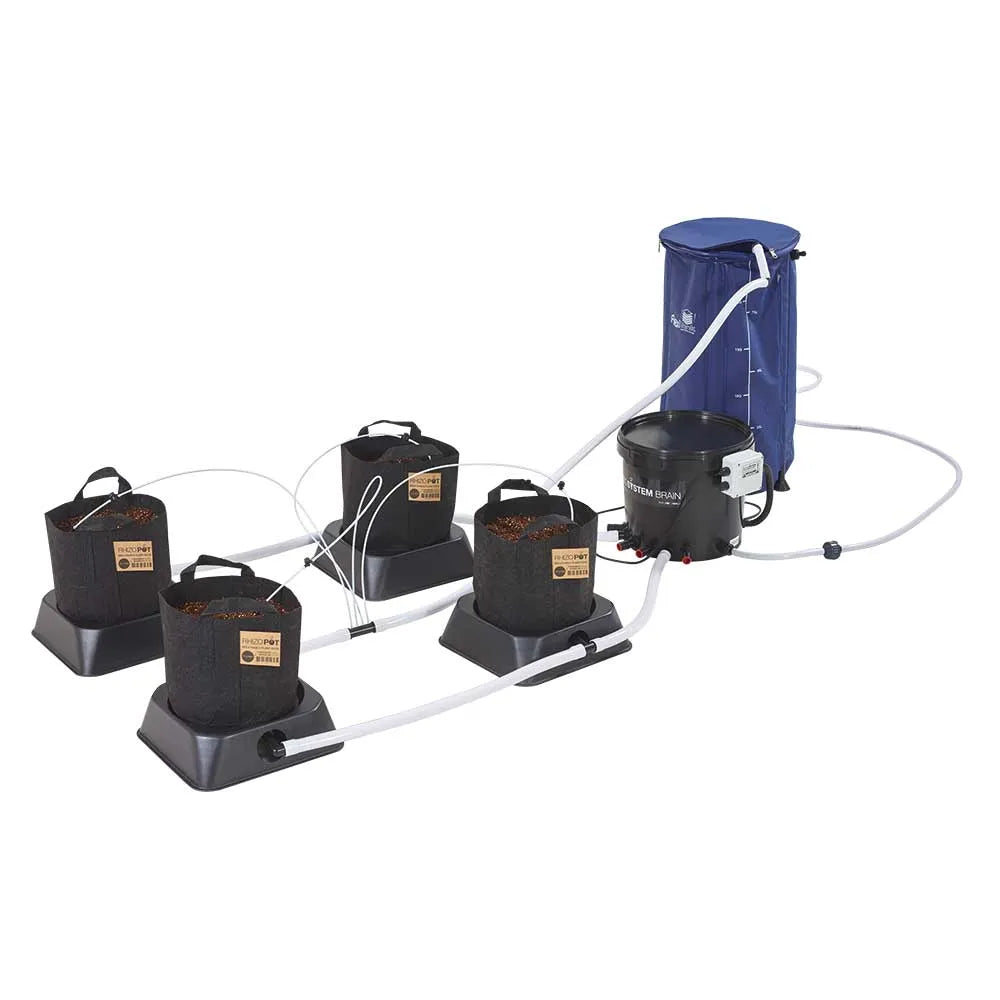

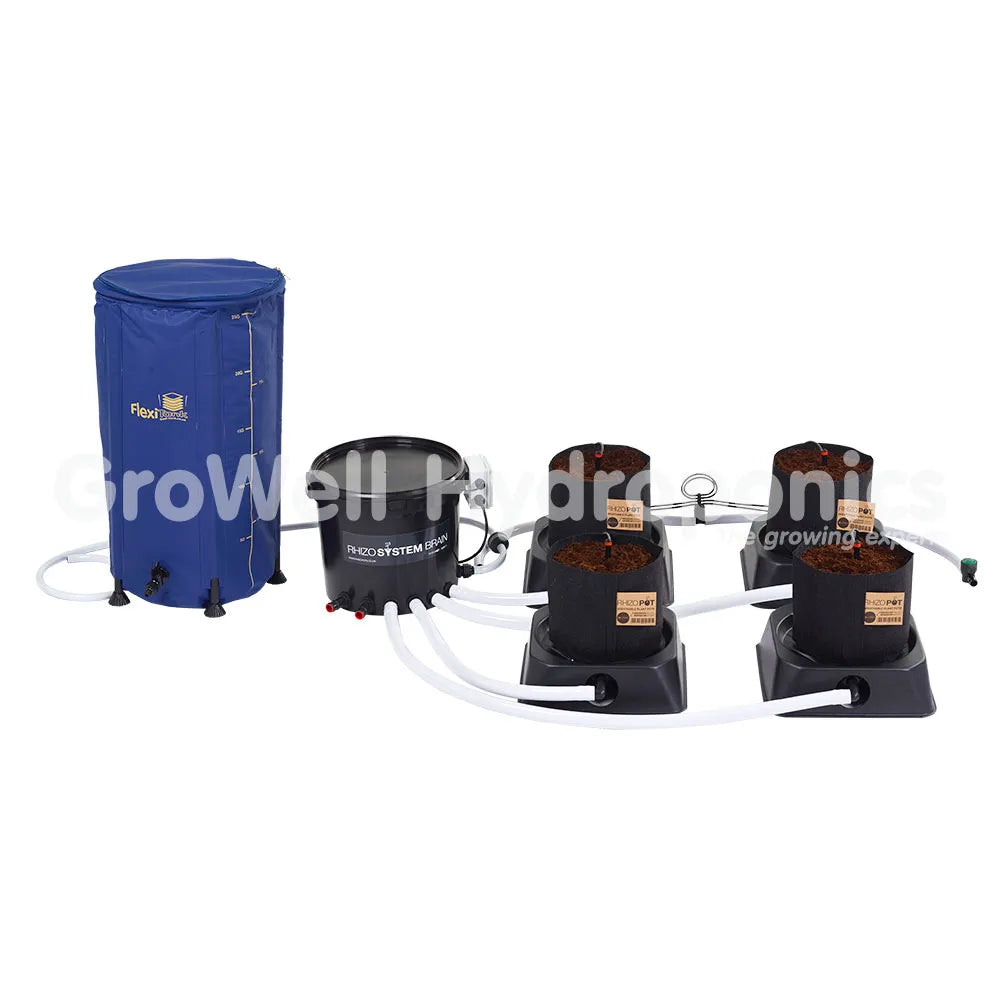

RhizoSystem Lite Standard - Drip & Drain (4 - 8 Pot)
| 4 Pot (Lite) | 8 Pot (Lite) | |
| RhizoStand | 4 | 8 |
| RhizoSystem Brain | 1 | 1 |
| 25mm IWS Elbow BSP | 4 | 4 |
| 13mm Non-Return Valve | 1 | 1 |
| 13mm Iceline (mtr) | 3 | 3 |
| 25mm Iceline (mtr) |
8 | 10 |
| IWS Tee 25mm BSP |
2 | 6 |
| 25mm IWS DWC Pro Washer |
8 | 16 |
| 25mm IWS DWC Pro Nut | 4 | 8 |
| 16L RhizoPots | 4 | 8 |
| FlexiTank | 1 x 100L | 1 x 100L |
| Digital Timer | 1 | 1 |
| Sicce Extrema Pump | 1 | 1 |
| Worm Clip 19 - 26cm | 1 | 1 |
| 25mm Inline Tap | 1 | 1 |
| Angled Stake for PCB | 4 | 8 |
| 1m x 4m Black RhizoPipe | 6 | 10 |
| 25mm to 4 way outlet | 1 | 2 |
| 19mm Iceline | 4 | 6 |
| 3/4" FLD Filter | 1 | 1 |
| 19mm Hosetail | 2 | 2 |
| 19 -13mm Reducing Tee | 1 | 1 |
| 13mm Anti-Siphon | 1 | 1 |
| 19mm Barbed Elbow | 2 | 2 |
| 25mm - 19mm Barbed Reducer | 1 | 1 |
| 4mm Barbed Inline Valve | 4 | 8 |
| Greenblade Pipe Cutters | 1 | 1 |
Â

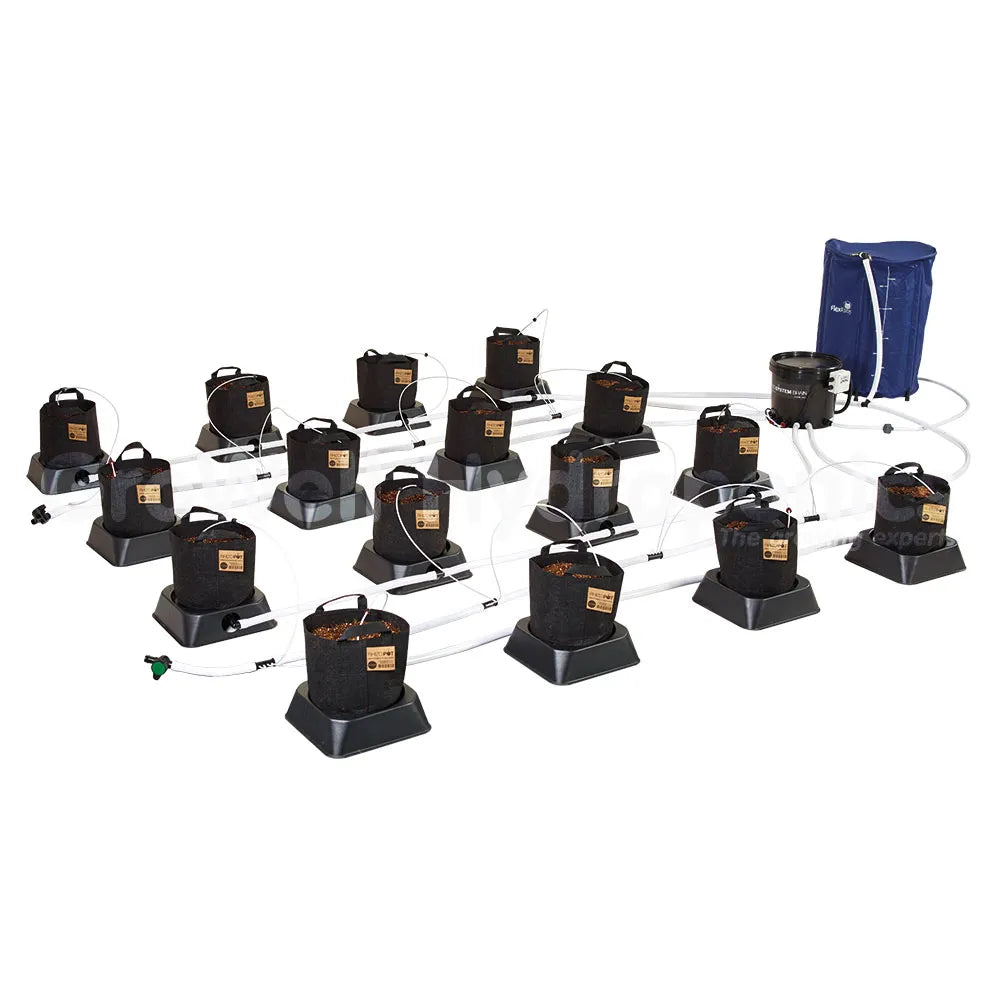

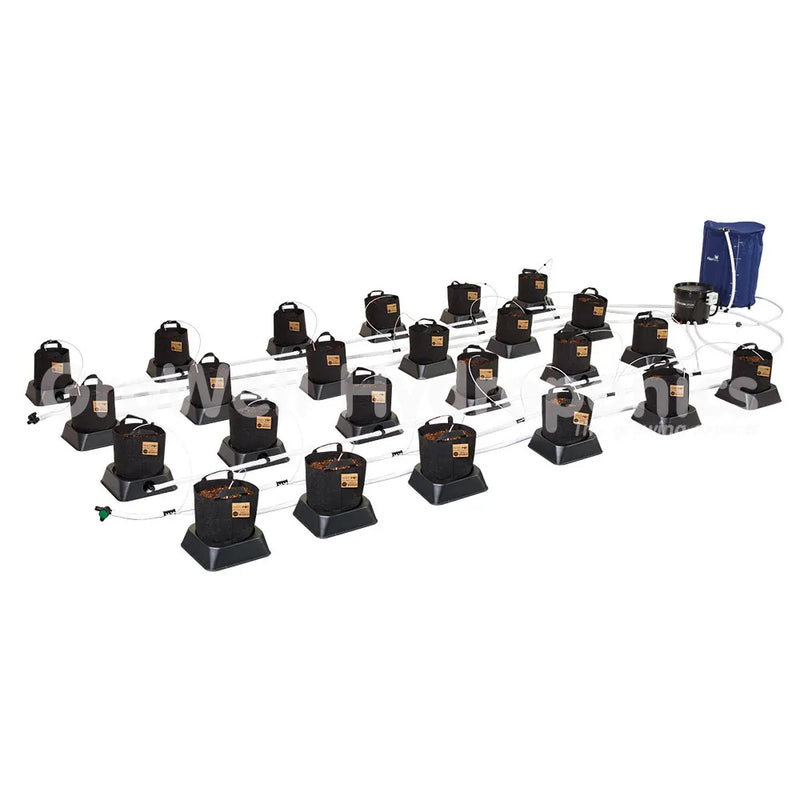

RhizoSystem Standard - Drip & Drain (12 - 36 Pot)
| 12 Pot | 16 Pot | 24 Pot | 36 Pot | |
| RhizoStand | 12 | 16 | 24 | 36 |
| Rhizo Sicce Brain | 1 | 1 | 1 | 1 |
| 25mm IWS Elbow BSP | 4 | 4 | 6 | 6 |
| 13mm Non-Return Valve | 1 | 1 | 1 | 1 |
| 13mm Iceline (mtr) | 3 | 3 | 3 | 3 |
| 25mm Iceline (mtr) |
26 | 32 | 52 | 65 |
| IWS Tee 25mm BSP |
8 | 12 | 20 | 32 |
| 25mm IWS DWC Pro Washer |
24 | 32 | 48 | 72 |
| 25mm IWS DWC Pro Nut | 12 | 16 | 24 | 36 |
| 16L RhizoPots | 12 | 16 | 24 | 36 |
| RhizoSystem V2 Tank Assembly | 1 | 1 | 1 | 1 |
| FlexiTank | 1 x 225L | 1 x 225L | 1 x 225L | 1 x 400L |
| Digital Timer | 1 | 1 | 1 | 1 |
| Aquaking | 1 x Q4003 | 1 x Q4003 | 1 x Q4003 | 1 x Q5503 |
| 25mm Inline Tap | 2 | 2 | 3 | 3 |
| 25mm Tee | 1 | 1 | 1 | 2 |
| Red 8L PCB | 12 | 16 | 24 | 36 |
| Angled Stake for PCB | 12 | 16 | 24 | 36 |
| 1m x 4m Black Pipe | 14 | 18 | 28 | 40 |
| 25mm to 4 way outlet | 4 | 4 | 6 | 9 |
| Pipe cutters | 1 | 1 | 1 | 1 |
| Worm Clip 23 - 35mm | 1 | 1 | 1 | 1 |
| Euro Travel Adapter | 1 | 1 | 1 | 1 |
Â
How To Use
1. Make Sure You Have Enough Space
You'll need:
| Suggested Layout | ||
|---|---|---|
| Space Needed | ||
| 4 Pot (Lite) | 1.2m x 1.2m | |
| 8 Pot (Lite) | 1.2m x 2.4m | |
| 12 Pot | 2m x 2m | |
| 16 Pot | 2.4m x 2.4m | |
| 24 Pot | 2.4m x 3.6m | |
| 36 Pot | 3.6m x 3.6m | |
2. Setting Up Your System
Your kit comes with a set of instructions, complete with diagrams and suggested layouts.
FOR BETTER DRAINAGE
- Keep drainage lines pulled tight for efficient drainage.
IF YOUR ROOM IS ON A SLOPE
- Position your RhizoSystem Brain Controller at the lowest point
- We recommend raising some of the stands so that all are level
YOUR RHIZOSYSTEM BRAIN
- Make sure it is plugged into your mains power supply at all times
- Keep unused inlet pipes covered with blanking caps to stop leaks
Questions & Answers
Ask a Question-
Whats the maximum number of standard size Rhizopots you can fit in a 1.2 x 1.2 space with this system? It says 4 on the guide but surely it's possible to fit 9 at a squeeze?
You might just get 6 in there at a squeeze - the standard stands are 37.5 x 37.5cm, but you also need to leave room for the pipework coming off them. We would advise sticking with 4 in a 1.2 x 1.2 tent, as the plants will be less crowded & have more room to fill out.
-
Can I get the 8XL and start off setting up as only 4 and expand later? If it is set up for 8 can I then only run 7 without having to re-wire or disconnect?
It is possible to expand the Rhizosystem Drip & Drain, you can run up to 48 pots from a single reservoir. It is possible to run an 8 pot system with 7 pots, you would just need to remove one drip line from the drip system.
-
Does it work with SUMO FEEDS? (8 x XL)
The Rhizosystem Drip & Drain will work really well with either the Shogun Samurai Terra or Coco nutrients, you would use the Terra range for soil, & the Coco nutrient for Coco media.
