Lumatek 30w UV Supplemental LED Bar

Lumatek 30W UV Supplemental LED Bar – Unlock Your Plant’s Potential

The Lumatek 30W UV LED Bar lets you introduce controlled ultraviolet light into your grow space to boost resin production, pigment development, and aromatic intensity.

It’s designed to run alongside full-spectrum LEDs, and give your plants the additional wavelengths they’d naturally receive outdoors.

This fixture emits a targeted blend of UV-A (365–400nm) and UV-B (280–315nm) light, which stimulates the production of secondary metabolites like terpenes, flavonoids, and trichomes.

Used sparingly in the final bloom phase, it helps bring out richer flavours, deeper colours, and frostier flowers. We've trialled this bar in-house and recommend using it for 2–4 hours per day during the last 2–3 weeks of flower.

How Many UV Bars Do You Need?

To ensure even UV distribution and safe intensity levels, Lumatek recommend the following configurations:

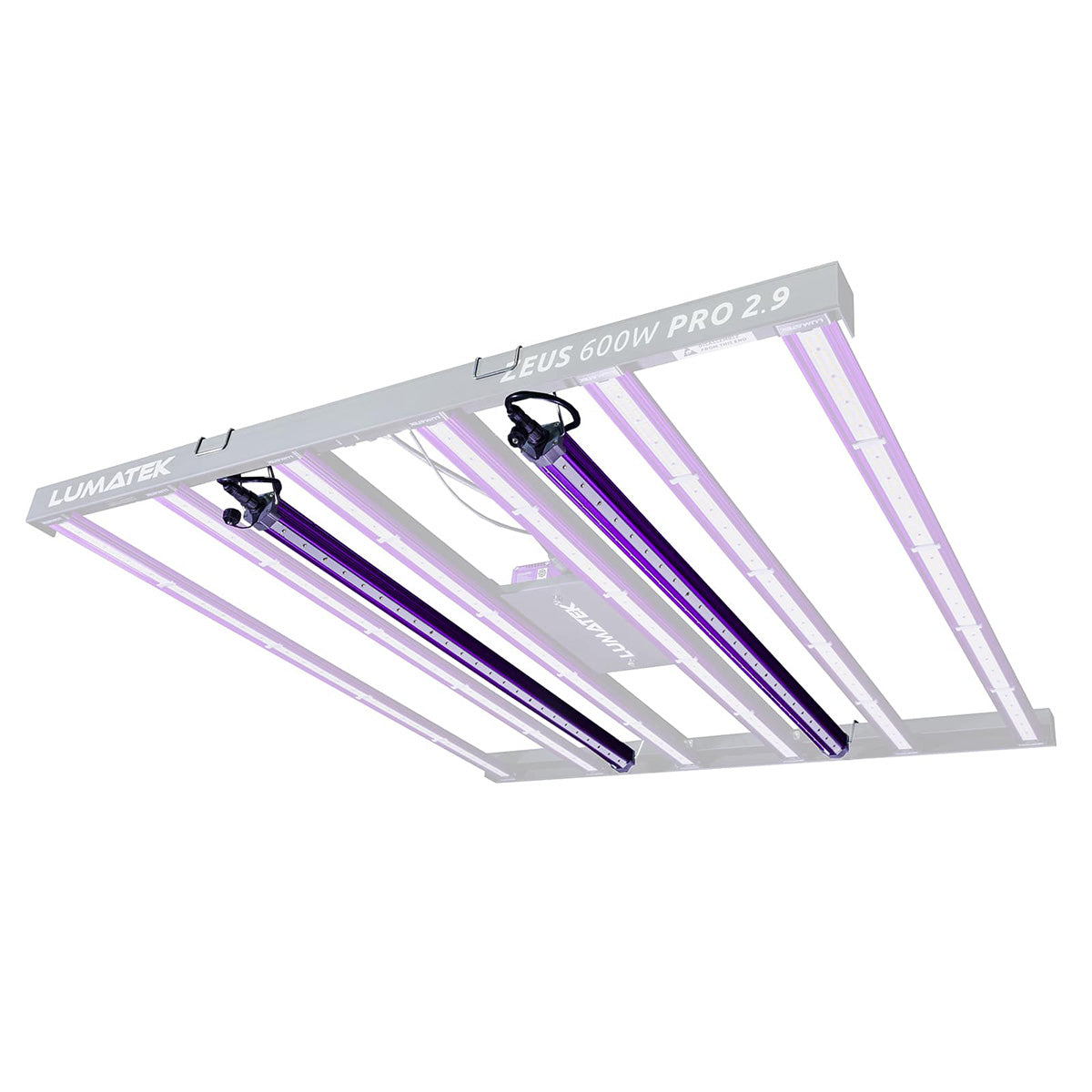

• Use 2x 30W UV Bars with:

  • ZEUS 465W PRO 2.9 – 1.2 x 1.2 m footprint
  • ZEUS 600W 2.6 – 1.4 x 1.4 m footprint

  • ZEUS 600W PRO 2.9 – 1.4 x 1.4 m footprint
  • ZEUS 1000W Xtreme CO₂ – 1.5 x 1.5 m footprint (with CO₂)
• Use 3x 30W UV Bars with:
  • ZEUS 1000W PRO – 1.5 x 2.0 m footprint

Key Features

• Custom UV spectrum for bloom-phase enhancement
• Dimmable output to fine-tune intensity as needed
• Easy integration with existing Lumatek LED rigs
• Fanless passive cooling for silent operation
• IP65 sealed housing for durability and safety

Best For

• Maximising terpene and flavonoid expression
• Improving colouration and resin density
• Supplementing LED grows with UV-A and UV-B
• Experienced growers focused on crop quality

Technical Specs

• Power: 30W
• Spectrum: UV-A (365–400nm), UV-B (280–315nm)
• Input Voltage: 220–240V, 50–60Hz
• Cooling: Passive
• Dimming: Manual (built-in dial)
• Mounting: Clip-on brackets and suspension kit included
• Protection Rating: IP65
• Dimensions: 1000mm x 40mm x 40mm

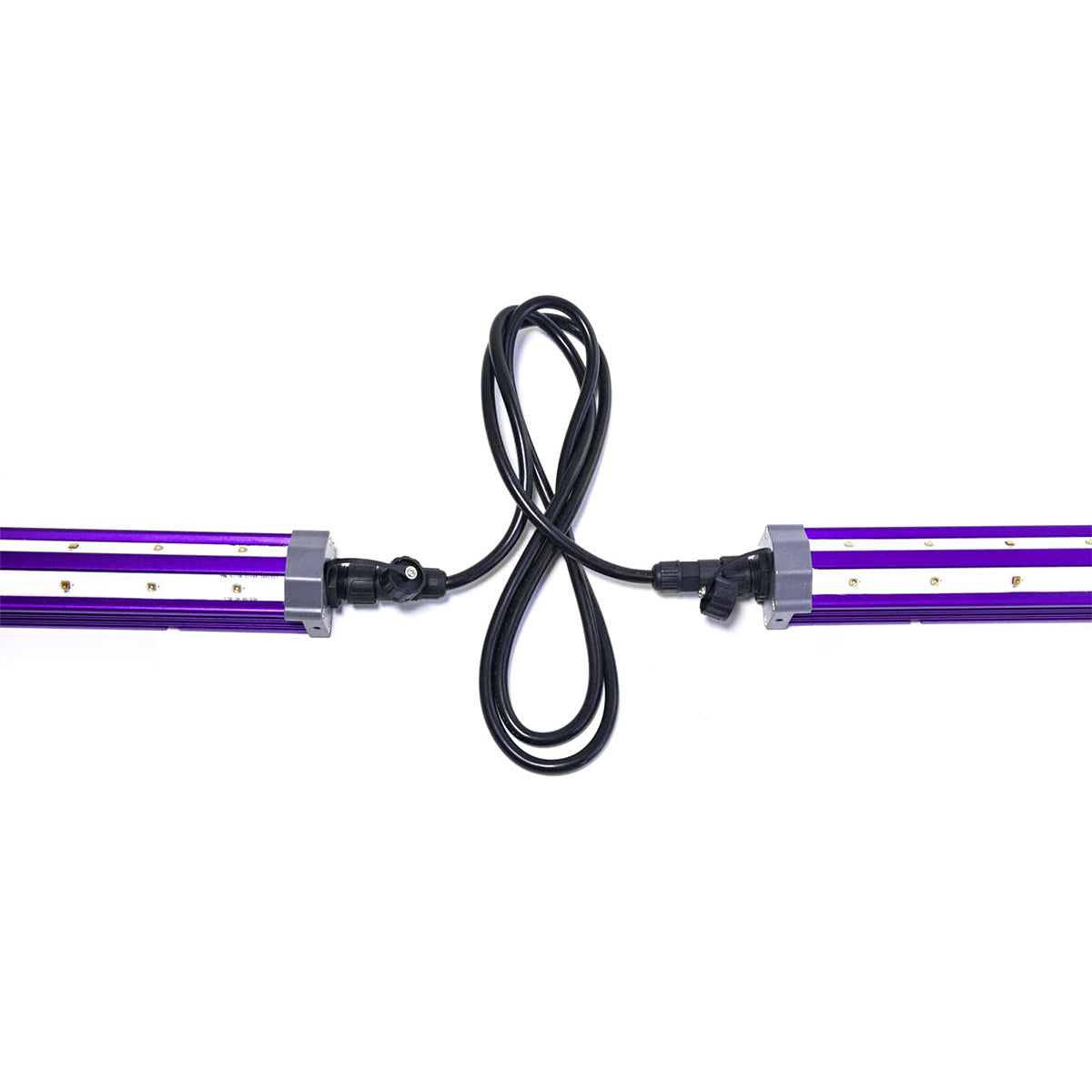

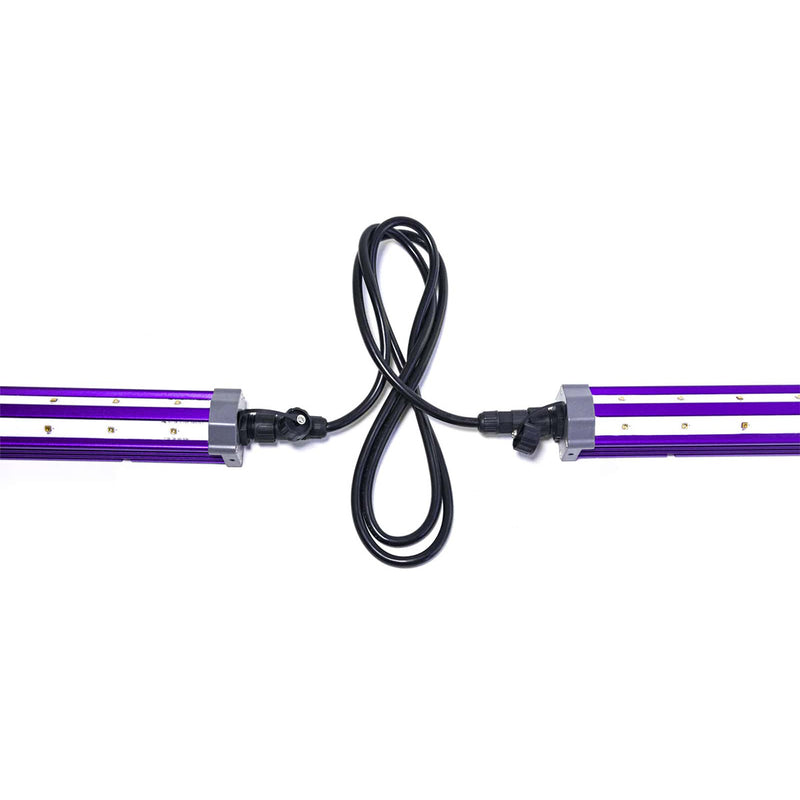

• Cable: 3m power lead included
• Warranty: 3 Years
